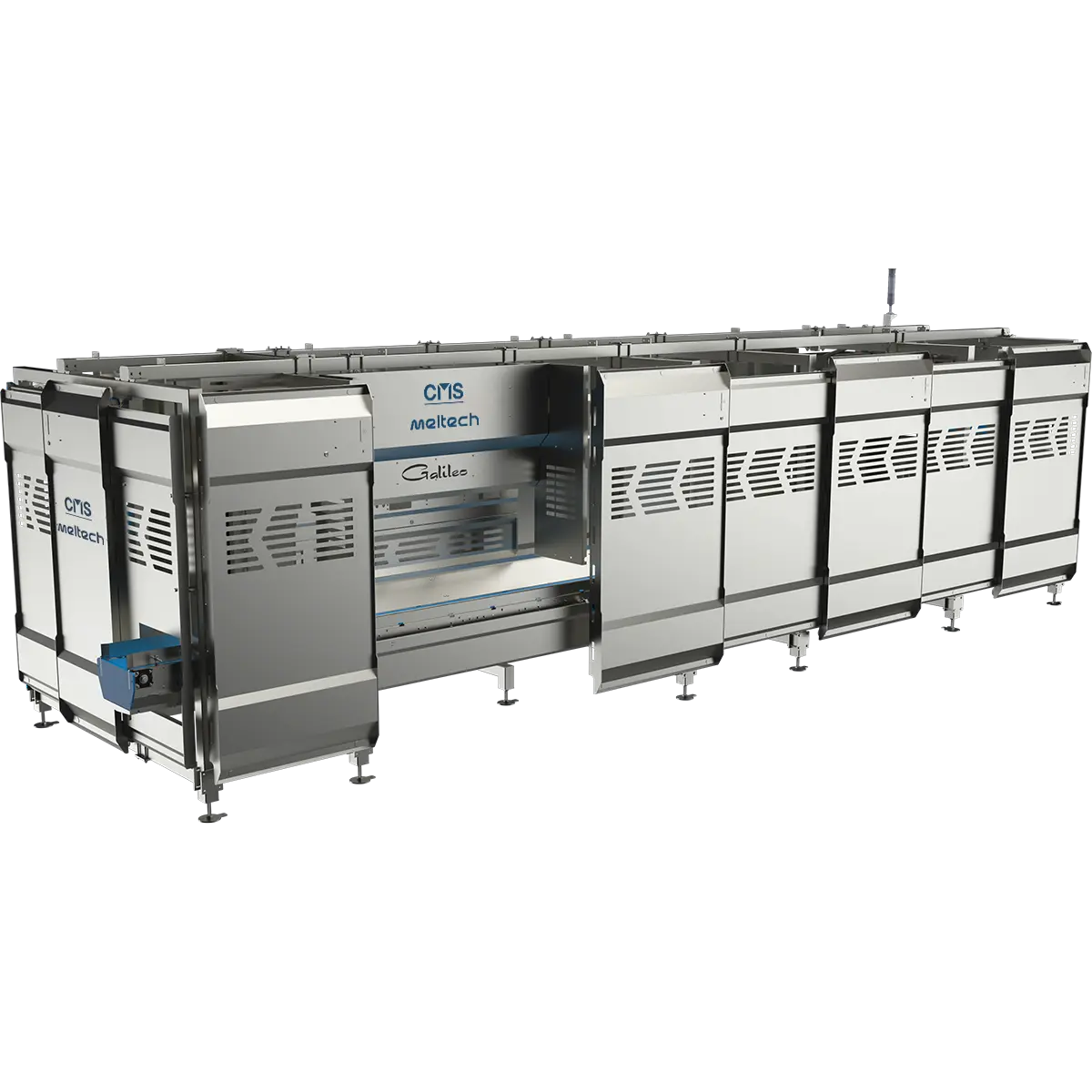

Galileo DPM3200

Setting a new benchmark in dark meat deboning precision, yields, and operational simplicity.

  • Simple and Affordable Design utilizing Advanced Sensors for Cutting Precision
  • State-Of-The-Art Automation Technology
  • Lowest Maintenance Cost in the Industry
  • Unmatched Yields vs Competition
  • User-Friendly Touch Screen Control Panel
  • Provides Significant Labor Savings
  • Processing Speeds of up to 3,200 legs per hour
  • Color-Coded Shackles for Easy Left and Right or Combination Loading
  • Individual Sizing for each Leg
  • Small Footprint

With the capability to debone up to 3,200 legs per hour with Galileo, this equipment optimizes dark meat production while providing the lowest maintenance costs in the industry.

Unlike current complex, technology-heavy solutions, Galileo operates on an almost entirely mechanical system with a simple, user-friendly touch-screen control. This State-Of-The-Art technology drastically reduces the need for highly specialized technicians and also lessens the costs of yearly maintenance contracts. Its streamlined structure also simplifies the cleaning and sanitization process.

The results are maximum yields and excellent product presentation. Galileo accomplishes this through surgically precise cuts, minimizing bone fragmentation and product damage, therefore reducing additional trimming needs. In addition, these systems offer an extensive range of final product adjustments—from retaining or removing the skin to precisely controlling the amount of cartilage—ensuring that you meet even the most demanding market specifications.

Galileo by Meitech combines high throughput, mechanical reliability, and operational flexibility, delivering superior performance—without complexity—while consistently achieving the highest yields and quality in dark meat deboning.

  • Excellent Presentation and Yields of Deboned Meat
  • Accommodates either Skin-On or Skin-Off product
  • Efficiently Processes a Wide Variety of Leg Sizes
  • Cleanly Scraped Bones
  • Minimal Bone Breakage/Fragments left vs our Competition
  • Minimal need for additional hand-trimming

Additional information

Capacity

Up to 3,200 Legs/Hour

Whole Leg Weight and Tolerance Range

Minimum weight = 7.05 oz/200 g
Maximum weight = 18.2 oz/800 g

Product Dimensions (without stack light)

Length: 335 in / 8,500mm
Width: 95 in / 2,400mm
Height: 95 in / 2,400mm

Active Power

20 amp / 9 kW

Apparent Power

15 kVA

Input

480 Volt AC (3F+N+T)

Control

24 Volt DC

Pneumatic Installation

Minimum 7 bar. Maximum 8 bar. (clean filtered dry air)

Structural Material

Stainless steel AISI 304, nylon, and other non-corrosive materials.
